Gasket Material from AS&P

PTFE Gasket / Non-Asbestos Gasket / Flexible Graphite Gasket / Mica Therm Gasket

Order Now!

SICHEM S92 Details

SICHEM S92 Details

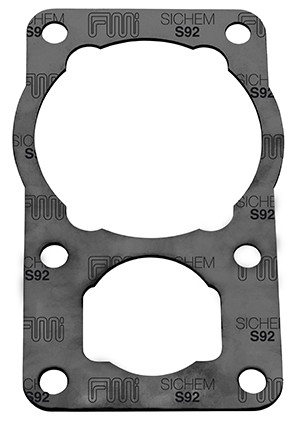

SICHEMŽ S92
CompositionMicrocellular
Modified PTFE
with
mica

Density ASTMF 1315 (g/cm3)1.2

Temperature operating range (°C)-260/+260

Max operating pressure (Bbar)50

P x T Max.( Thk 0.8 - 2.0 mm) (Bar x °C)12000

P x T Max. ( Thk 3.0 mm) (Bar x °C)8500

Leakage DIN 3535-6 (mg*s-1*m-1)<0.001

Creep DIN 3535-6 (%)<16

Compression DIN 3535-6 (%)>50

Recovery DIN 3535-6 (%)>5

PH range0-14

Availability
Thickness (mm)
Sheets size (mm)
1.500x1.500
1.750x1.750
0,75/1,0/2,0/2,5/3,0/4,0/5,0/6,0

Tollerances
Thickness (%)
Sheets size (mm)
+/- 50
+/- 10


Other Expended Graphite Gaskets
